How to Create an EDI to JSON Transformation

How to Create an EDI to JSON Transformation

Posted on October 26, 2016 0 Comments

With the exploding adoption of IoT and mobile applications, how do you handle all this data behind REST web services along with their expanded requirements?

How to Create an EDI to JSON TransformationFor years, Progress customers have been using XML Converters to bi-directionally convert EDI and flat-file data into XML documents and streams. As companies adopt and integrate with IoT, mobile devices and data behind REST web services, their requirements have expanded, now requiring bi-directional conversion of EDI/flat-file data into JSON instead of XML.

How to Convert  EDI/Flat-file Data Into JSON with XQuery and XML Converters

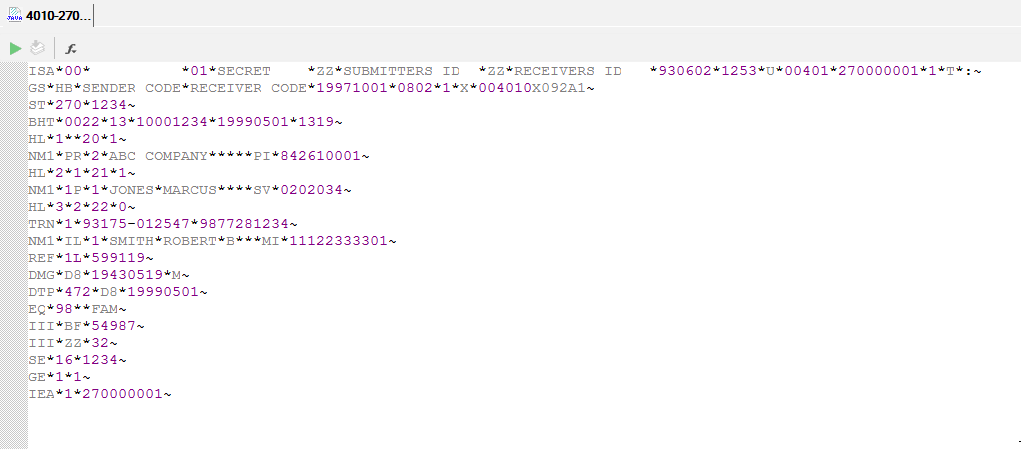

How can one do this with XQuery and the XML Converters?  Let me show you using the following sample X12 270 5010 (Real-time eligibility, coverage or benefit requests) HIPAA document and Stylus Studio

How can one do this with XQuery and the XML Converters?

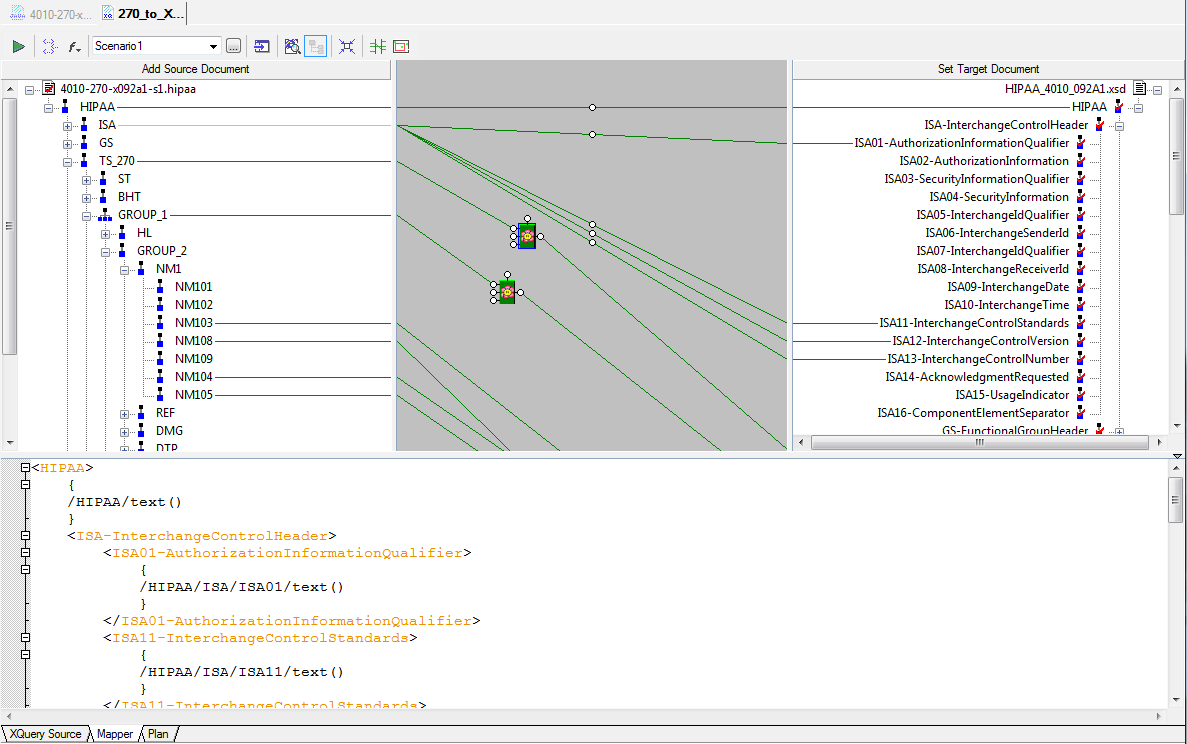

Using Stylus Studio’s XML Mapper functionality and the DataDirect XQuery engine, you’ve mapped your EDI data into the desired XML Schema (see below).

You’ve mapped your EDI data into the desired XML Schema

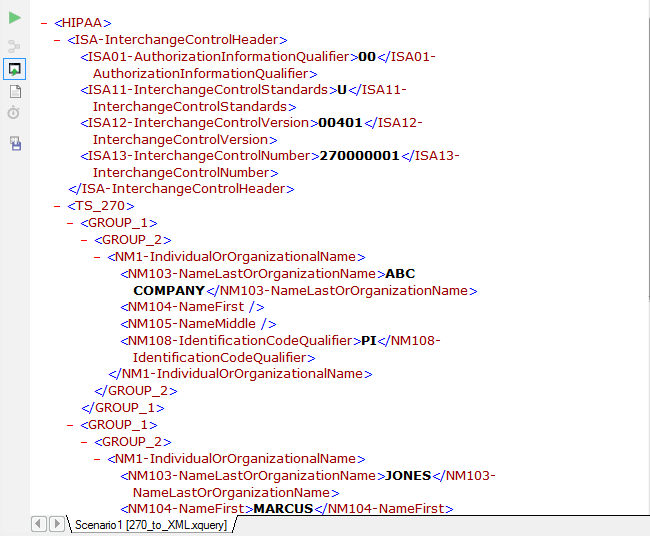

When you press the green preview button, you generate your desired XML output.

Your desired XML output

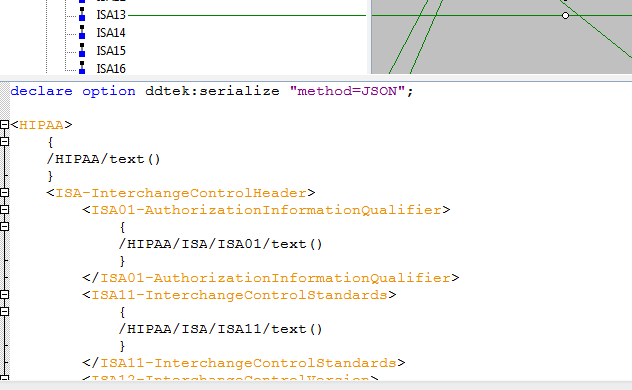

The DataDirect XQuery engine is seamlessly integrated with the XML Converters and can force the output into another supported format just by using one of the DataDirect XQuery functions. To generate the output as JSON data, write the following command at the beginning of your existing XQuery statement.

declare option ddtek:serialize “method=JSON”;


declare option ddtek:serialize “method=JSON”;

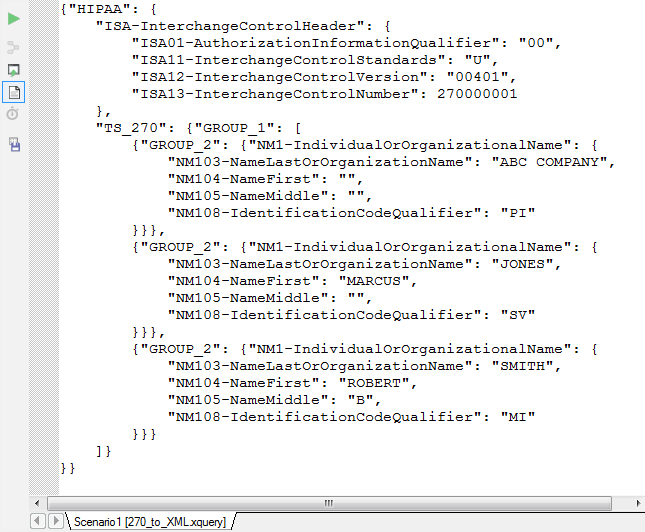

Re-run your XQuery statement by pressing the green preview button. You’ll see the output has been converted to JSON based on the XML Schema defined.

The output has been converted to JSON based on the XML Schema defined

Now, your web clients, mobile applications or IoT devices are ready to support real-time eligibility, coverage or benefit requests with JSON.
