JBoss Application Server Tutorial

This document explains the steps required to use the DataDirect Connect® for JDBC® drivers with the JBoss Application Server¹. These steps include:

1. Install DataDirect Connect for JDBC.
2. Create a data source. A sample data source file, datadirect-ds.xml, is available with this document.
3. Generate the JavaServer Page (JSP) test page. A sample JSP test page is provided in the JBossTestWeb.war file, which is available with this document.
4. Deploy the JBoss web application to the JBoss server.
5. Run the JBoss web application.
6. Map a data source to a local Java Naming and Directory Interface (JNDI) name in a Session Enterprise Java Bean (EJB).
7. Specify the data source for an Entity EJB.

Detailed information about each of these steps is included in the following sections.

First, install the DataDirect Connect for JDBC drivers using the instructions in the DataDirect Connect for JDBC Installation Guide.

Next, copy the DataDirect Connect for JDBC jar files (util.jar, base.jar, db2.jar, informix.jar, oracle.jar, sqlserver.jar, and sybase.jar) from:

install_dir/lib

to:

JBoss_home/server/server_config/lib

where install_dir is your DataDirect Connect for JDBC installation directory, JBoss_home is your JBoss installation directory, and server_config is your server configuration directory.

For example, to configure the DataDirect Connect for JDBC drivers for the default JBoss server configuration, copy the driver jar files to JBoss_home/server/default/lib.

1. In the JBoss_home/server/server_config/deploy directory, create a data source file named datadirect-ds.xml. The file name must end with the characters ds.xml so that the JBoss server can recognize it as a data source file; however, the file name can be prefixed with any set of characters.


2. Edit the file as shown in the following example, adding or modifying the required XML tags as described in this step. The example shown is contained in the file datadirect-ds.xml, which is available from the same location you obtained this document.


   • The value of the <jndi-name> tag specifies the JNDI name, which is used to look up the data source. In the following example, the JNDI name used to look up the data source is ds/TestDS. JBoss maps the driver to the global space. An application can look up the data source using the string:
     java:ds/TestDS


   • Modify the value of the <driver-class> tag to specify the appropriate class name for the driver to use. For example, the following code specifies the class name of the DataDirect Connect for JDBC SQL Server driver.
     <driver-class>

     com.ddtek.jdbc.sqlserver.SQLServerDriver

     </driver-class>



   • Modify the value of the <connection-url> tag to specify the correct connection information for the driver and database server to use. For example, the following code specifies connection information used by the DataDirect Connect for JDBC SQL Server driver to connect to the server named myserver on port 1433.

     <connection-url>

     jdbc:datadirect:sqlserver://myserver:1433

     </connection-url>



   • Modify the value of the <user-name> and <password> tags to specify a valid user name and password for the database server. For example, the following code specifies the user name test and the password secret:
     <user-name>test</user-name>

     <password>secret</password>



   • The <connection-property> tag specifies DataDirect Connect for JDBC driver-specific connection properties. For example, the following code sets the value of the DataDirect Connect for JDBC SQL Server driver connection property SendStringParametersAsUnicode to false.


     "

     <connection-property name="sendStringParametersAsUnicode">

     false

     </connection-property>



   • The tags following the <!--pooling parameters--> comment in the following example are properties that control JBoss connection pooling. Refer to the JBoss documentation for details on setting these properties.
     <?xml version="1.0" encoding="UTF-8"?>

     <!-- =========================================================== -->

     <!--  -->

     <!-- DataDirect Data Sources -->

     <!--  -->

     <!-- =========================================================== -->

     <!--

     See the generic_ds.xml file in the doc/examples/jca folder

     for examples of properties and other tags you can specify

     in data sources

     -->

     <datasources>

     <!-- JBossTest Data Source -->

     <local-tx-datasource>

     <jndi-name>ds/TestDS</jndi-name>

     <connection-url>

     jdbc:datadirect:sqlserver://myserver:1433

     </connection-url>

     <driver-class>

     com.ddtek.jdbc.sqlserver.SQLServerDriver

     </driver-class>

     <user-name>test</user-name>

     <password>secret</password>

     <!-- Driver Specific Options -->

     <connection-property name="sendStringParametersAsUnicode">

     false

     </connection-property>

     <!--pooling parameters-->

     <min-pool-size>5</min-pool-size>

     <max-pool-size>100</max-pool-size>

     <blocking-timeout-millis>5000</blocking-timeout-millis>

     <idle-timeout-minutes>15</idle-timeout-minutes>

     </local-tx-datasource>

     </datasources>



You must create a JSP page that uses the data source you created in the previous step. A sample JSP page named JBossTest.jsp is provided in the JBossTestWeb.war file, which is available from the same location you obtained this document. This JSP page includes the following code to look up the data source and obtain a connection to the database from the data source.

Copy the JBossTestWeb.war file, available with this document, to the directory JBoss_home/server/server_config/deploy.

1. Start the JBoss application server by running run.bat or run.sh, located in the JBoss_home/bin directory. To start a configuration other than the default configuration, use the -c option when executing the script. For example to run the all configuration, use the following command:
   run -c all



2. Open a web browser and enter the following URL to display the JBossTest web page:
   http://localhost:8080/JBossTestWeb/JBossTest.jsp

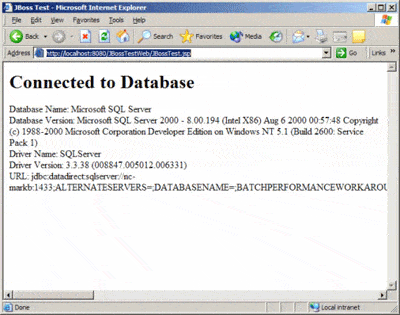

   The contents of the page display the version information of the driver and the database server to which it connects, if the DataDirect Connect for JDBC driver has been installed and configured correctly. For example, the following figure shows version information for the DataDirect Connect for JDBC SQL Server driver connecting to a database server running Microsoft SQL Server 2000.



Typically an EJB does not use the global JNDI name to look up the data source. Instead, it uses a logical JNDI name that is mapped to the global JNDI name of the data source.

To map a logical JNDI name to the global JNDI data source name in a Session EJB, declare a resource reference in the JBoss-specific deployment descriptor file jboss.xml. A resource reference is defined by adding the tag <resource-ref> as a child of the <session> tag as shown in the following example.

The value of the <res-ref-name> tag is the logical JNDI name an EJB uses to look up the data source. The value of the <jndi-name> tag is the global name of the data source to which the logical name is mapped.

Refer to your JBoss documentation for more information about JBoss-specific deployment descriptors.

To specify the data source to be used with an Entity EJB, specify the global JNDI name of the data source in the JBoss-specific Container Manager Persistence (CMP) deployment descriptor, jbosscmp-jdbc.xml. The value of the <datasource> tag specifies the global JNDI name of the data source to use with Entity EJBs. The <datasource> tag can be specified as a child of the <defaults> tag as shown in the following example, or it can be specified as a child of a particular <entity> tag.

Refer to your JBoss documentation for more information about JBoss-specific deployment descriptors.

¹ The steps in this paper were generated using JBoss 3.2.3. These steps may vary for other versions of JBoss.
