We have had numerous requests of implementing RadCaptcha into a web form. This short post illustrates how to modify a Sitefinity form control to perform a server-side validation.

Sitefinity 6.2 release will add captcha for form controls out of the box!

Register CAPTCHA as Form Control

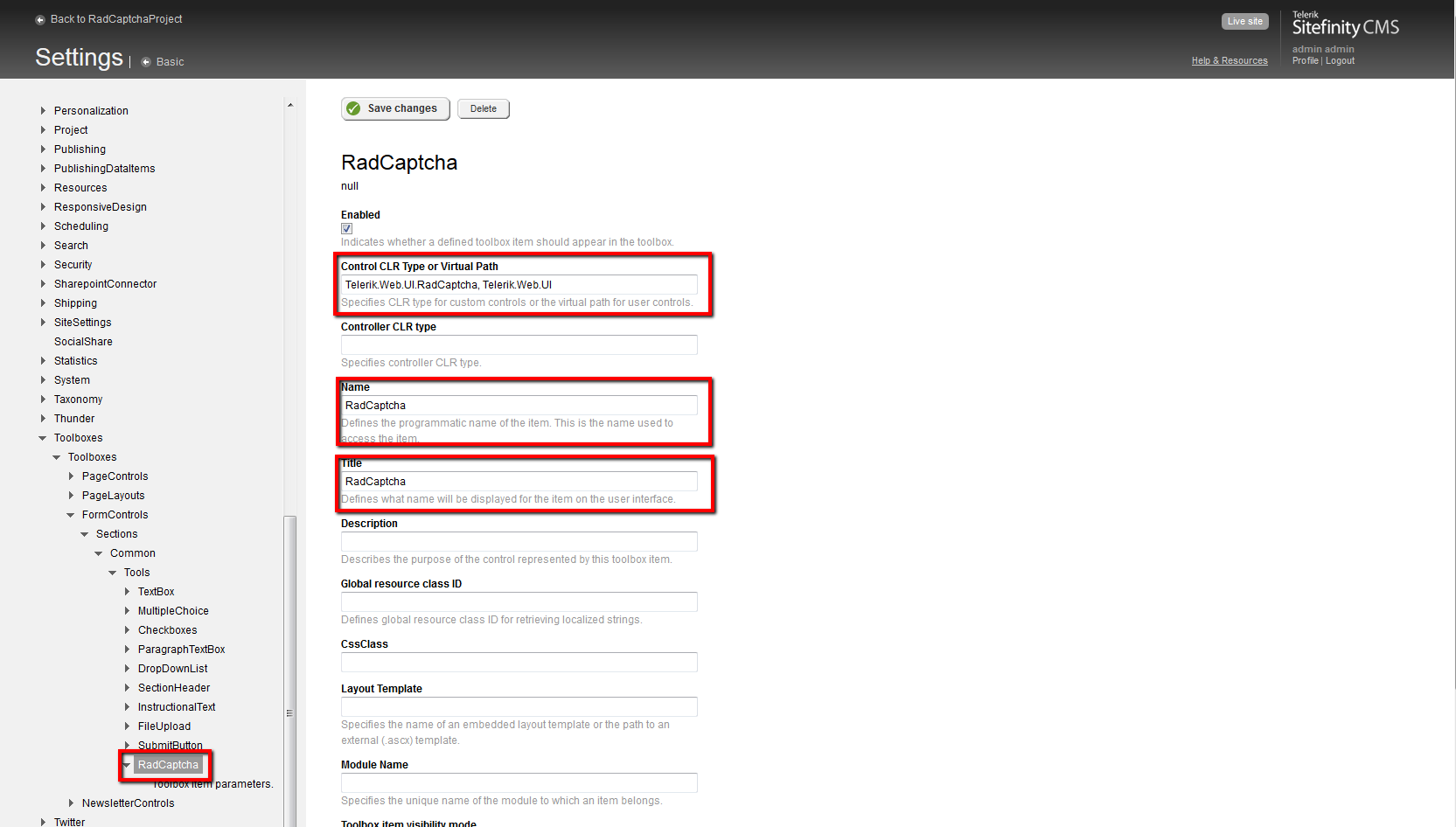

First, go to the Sitefinity backend in Administration >> Settings switch to Advanced Settings and browse Toolboxes >> FormControls >> Sections >> Common >> Tools (this will register a RadCaptcha control inside Common section)

Click Create new and set Control CLR Type or Virtual Path to Telerik.Web.UI.RadCaptcha, Telerik.Web.UI put a name (without spaces) and a title for the UI.

Adding Custom Form Library to Sitefinity project

Next step is to implement new form control to fire RadCaptcha validation.

In Visual Studio add a project library. Add all necessary .dll dependencies (Telerik.Sitefinity.dll, Telerik.Web.UI.dll) found in SitefinityWebApp\bin. Add this library as a reference in SitefinityWebApp in order to be accessible in Sitefinity.

Code:

using System;
using System.ComponentModel;
using System.Linq;
using Telerik.Sitefinity.Modules.Forms.Web.UI;
using Telerik.Sitefinity.Services;
using Telerik.Sitefinity.Web.UI;
using Telerik.Web.UI;

namespace NewFormControl
{
    public class FormControlWithCaptcha:FormsControl
    {
        private readonly string captchaErrorMessage = "Invalid Code, please try again";

        private RadCaptcha captcha;

        protected RadCaptcha MyCaptcha
        {
            get
            {
                if (!SystemManager.IsDesignMode)
                {
                    //retrieve the captcha control from the list of controls in the form
                    foreach (object control in base.FormControls.Controls[1].Controls)
                    {
                        if (control.GetType() != typeof(RadCaptcha))
                        {
                            continue;
                        }
                        this.captcha = control as RadCaptcha;
                        break;
                    }
                }
                return this.captcha;
            }
        }

        protected override void InitializeControls(GenericContainer container)
        {
            if (!SystemManager.IsDesignMode)
            {
                base.InitializeControls(container);
                base.BeforeFormSave += new EventHandler<CancelEventArgs>(this.FormsControlCustom_BeforeFormSave);
            }
        }

        protected void FormsControlCustom_BeforeFormSave(object sender, CancelEventArgs e)
        {
            if (this.MyCaptcha != null && !this.MyCaptcha.IsValid)
            {
                e.Cancel = true;
                this.MyCaptcha.ErrorMessage = this.captchaErrorMessage;
            }
        }
    }
}

The code is quite simple – it inherits old FormsControl, adds an event to fire validation in base.InitializeControls(container) method. Adds a captcha error message, shown if the validation code doesn`t match.


The referenced project must be built under .NET 4.0 (if the target framework is 4.5 it will be incompatible with SitefinityWebApp)

Registering the Custom Form as a page control

Register this new form control as a page control.

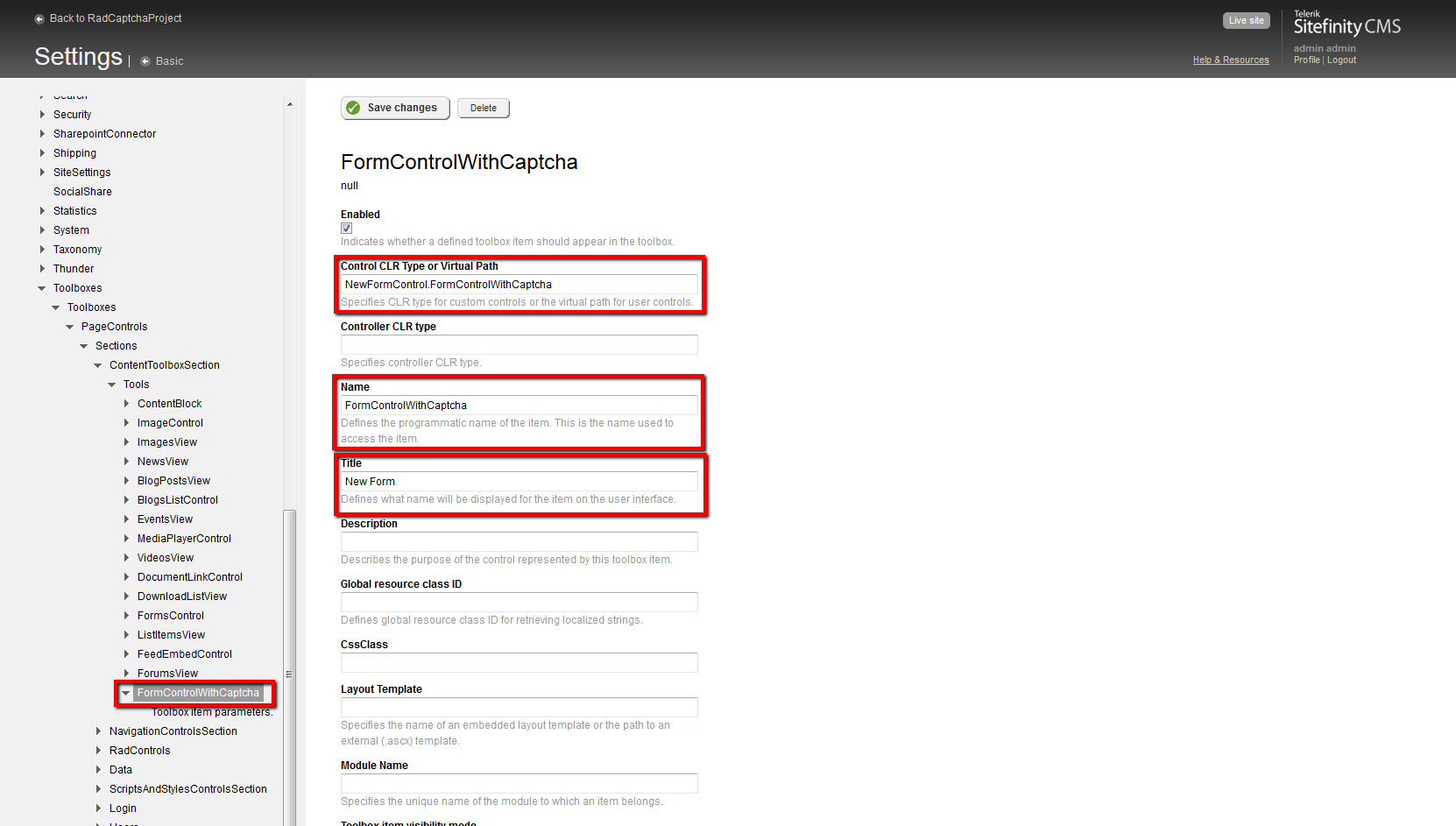

Go to Administration >> Settings switch to Advanced Settings and browse Toolboxes >> PageControls >> Sections >> ContentToolboxSection >> Tools

Click Create new and set Control CLR Type or Virtual Path to NewFormControl.FormControlWithCaptcha put a name (without spaces) and a title for the UI.

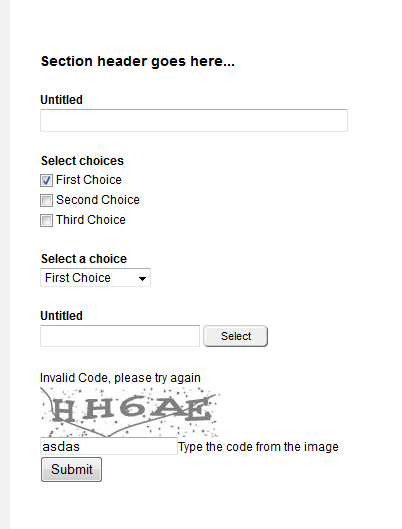

As a result we got fully working form control with captcha:



Here you can download the complete sample.
