Add customizable grid widgets to MVC templates

You can leverage the set of grid widgets that help you customize your layout by dropping them on your pages. Each grid widget on a page forms one or several placeholders for your other widgets (depending on the page template).

NOTE: MVC grid widgets serve the same purpose as the layout controls in ASP.NET Web Forms.

You can find the Grid widgets section in the Page toolbox under Layout.

In the file system, grid widgets are located in the GridSystem/Templates folder of each resource package. You can use them only on pages and templates based on this specific package.

Bootstrap grid widgets markup corresponds to the markup of the grid system of the Bootstrap framework. For more information, see Bootstrap grid.

NOTE: Similarly, if you create a package, based on another CSS framework, you can use the classes of the framework's grid system in the grid widgets of your package.

For more information about resource packages, see Resource packages GitHub repository and Overview: Resource packages.

Create custom grid widgets

You can work with a variety of grid widgets, shipped with the Bootstrap package out-of-the-box. For a list of the default Bootstrap grid widgets, see the GitHub repository. Each grid widget covers a basic grid column configuration via the Bootstrap grid CSS classes and markup. For more information, see Bootstrap grid.

For example, the grid-3+9 widget defines a Bootstrap row with two columns, the first one occupying 3 portions and the second one - 9 portions of the row. For details, see the
Bootstrap grid-3+9 template file.

The following code sample demonstrates the template of the grid-6+6 widget:

In the code above:

  • sf_colsIn class
    Defines a placeholder on the page, so that you can drop widgets there
  • data-sf-element
    Enables you to add and remove classes from parts of the grid widget template. For example, you can add CSS classes to the rows and columns of a grid widget. To do so:
    1. Click Edit in the top right corner of the grid widget
    2. Open the Classes tab.
      You see all available CSS class fields for the columns and rows of the grid widget.
    3. Insert the required classes, so that they are added to their corresponding element.

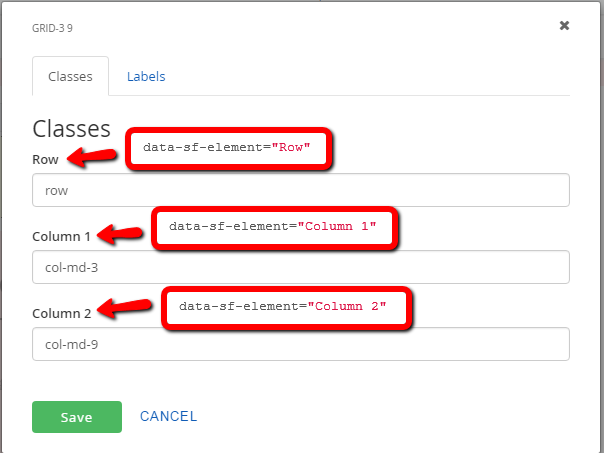

    You can use this attribute for your HTML elements added to the markup of a grid widget. To do so, place a data-sf-element property on the desired HTML element. The value of this property is the name of its CSS class field
    in the grid widget designer:
    grid widget 1
  • data-placeholder-label
    Sitefinity CMS enables you to add placeholder labels to grid widgets columns and rows in the Page editor. Thus, you can easily differentiate one grid widget from another after dropping them on a page.
    To set a placeholder label to a grid widget column, open the widget designer and then the Labels tab page. You can see a field for each respective grid widget column. Enter a unique placeholder name for the column you want.

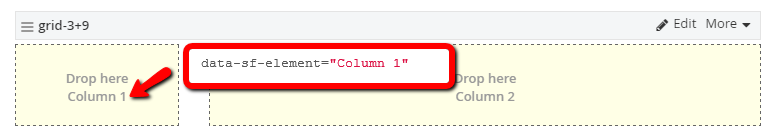

  • In some cases, you may want to set a unique label for your custom placeholders or other HTML elements in a grid widget. To do this, place a property on your HTML element. The value of this property corresponds to the name of the placeholder label field for your element in the  tab page of the widget designer:
    grid widget 2

Rename grid widgets

You can rename a grid widget by renaming the corresponding file. Sitefinity CMS automatically renames the widget in the toolbox and on the pages where it is used.

Create and modify grid widgets

Based on the specifics of your scenario, you may need to modify a grid widget or you need to create a custom one.

To create a grid widget:

  1. Copy a grid widget file from the /ResourcePackages/Bootstrap/GridSystem/Templates folder, for example, the grid-6+6 widget.
  2. Navigate to the /ResourcePackages/[Name-of-package]/GridSystem/Templates folder.
  3. Paste the grid-6+6 widget.
  4. Rename the widget, for example, MyGridWidget.
  5. Open the widget for editing and modify the markup, based on your scenario.
  6. To create a placeholder in the UI from an HTML element, put the sf_colsIn class on the specific element.

To modify an existing grid, simply modify its markup, based on your requirements.

Delete a grid widget file

In case you delete a grid widget file from the file system, an error message appears on the frontend. It informs that the template cannot be found. The widgets can no longer be displayed.

Responsive design and grid widgets

The responsive design of grid widgets depends on your implementation of the CSS framework you are using in your package. For example, the Bootstrap grid widgets are responsive because their markup is identical to the one of the Bootstrap grid system, which is responsive by default. For more information, see Bootstrap Grid system.

NOTE: The Bootstrap responsive design features are not supported if you are working with the Minimal resource package.

You can leverage an additional responsive feature, included in the Navigation widget. For devices with smaller screens, you can display the navigation in a <select> tag (dropdown). To do so:

  1. Open the Navigation widget template.

    NOTE: The template is usually located at  /Bootstrap/MVC/Views/Navigation/NavigationView.Horizontal.cshtml

  2. In the template file, locate the helper method @Html.Action("GetView", new { viewName = "Dropdown", model= Model})
    The method renders the <select> tag and is commented out by default, so you need to comment the helper method in.
  3. To use the <select>, modify its markup or use it in combination with the responsive utility classes of the Bootstrap package. To do that, modify the markup of the /Bootstrap/MVC/Views/Navigation/Dropdown.cshtml file.
