Reference: Architecture diagrams

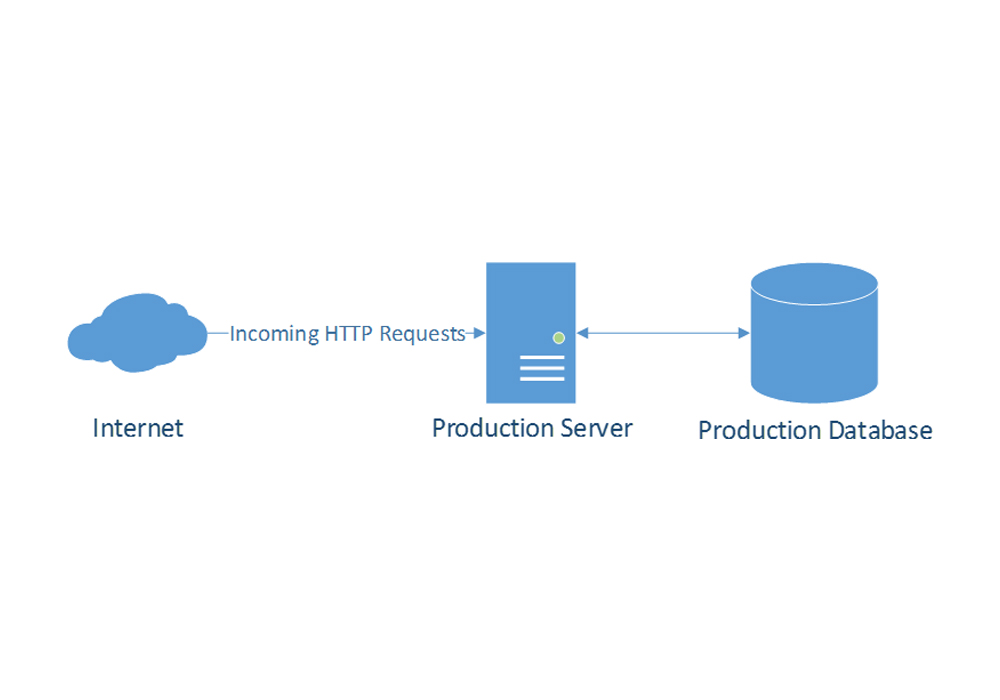

Basic architecture diagram (single level)
A simple diagram of the simplest setup commonly seen in a production environment. Two servers - one web and one database.

[![Architecture diagram 8](/Images/sf-images/default-source/default-album/architecture-diagram-8.jpg "Architecture diagram 8")](/Images/sf-images/default-source/default-album/architecture-diagram-8.jpg)

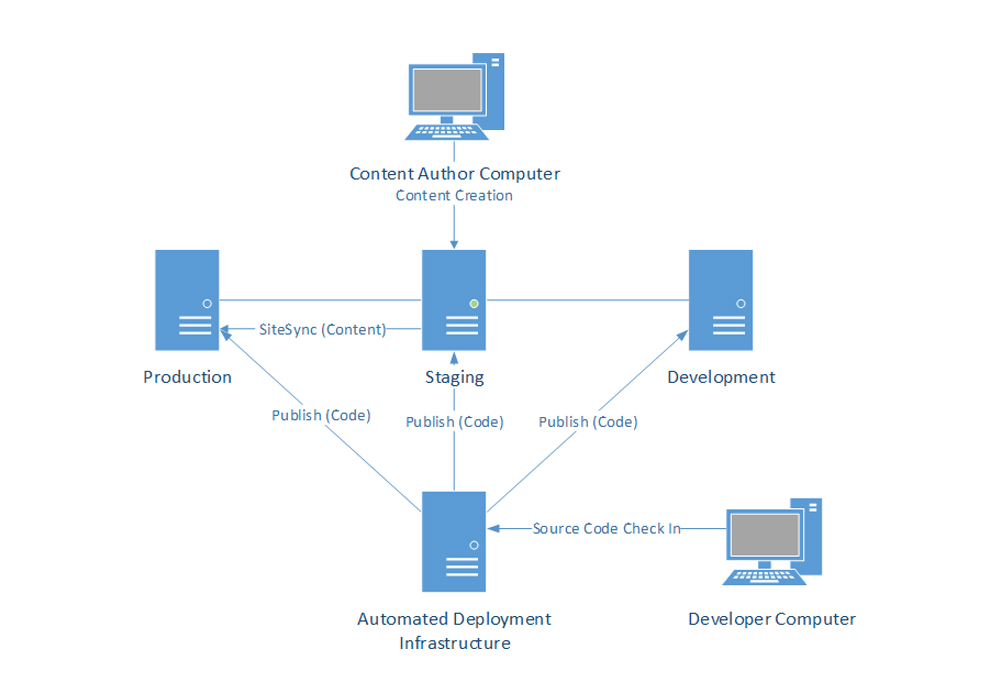

Simplified architecture diagram
A common architecture with databases removed for clarity. Staging and Development may share a database server. Generally, Production should have a completely separate database server.

[![Architecture diagram 7](/Images/sf-images/default-source/default-album/architecture-diagram-7.jpg "Architecture diagram 7")](/Images/sf-images/default-source/default-album/architecture-diagram-7.jpg)

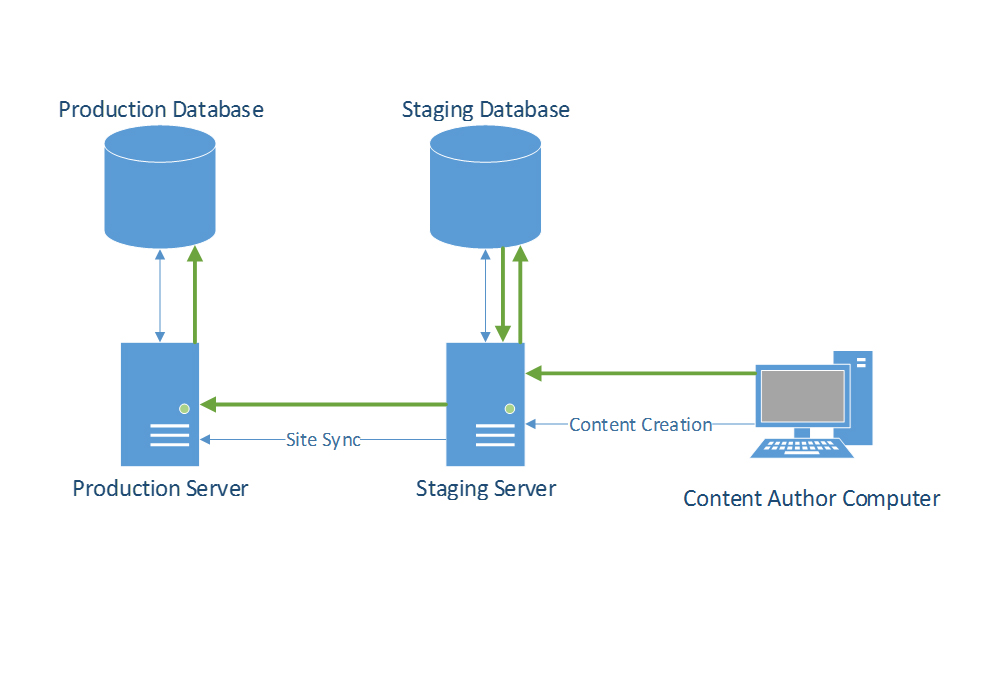

Content flow detail
A content author creates content in staging, which is stored in the staging database. On site sync, data is pulled from the database and transferred to the production server, which in turn stores the content in the production database.

[![Architecture diagram 6](/Images/sf-images/default-source/default-album/architecture-diagram-6.jpg "Architecture diagram 6")](/Images/sf-images/default-source/default-album/architecture-diagram-6.jpg)

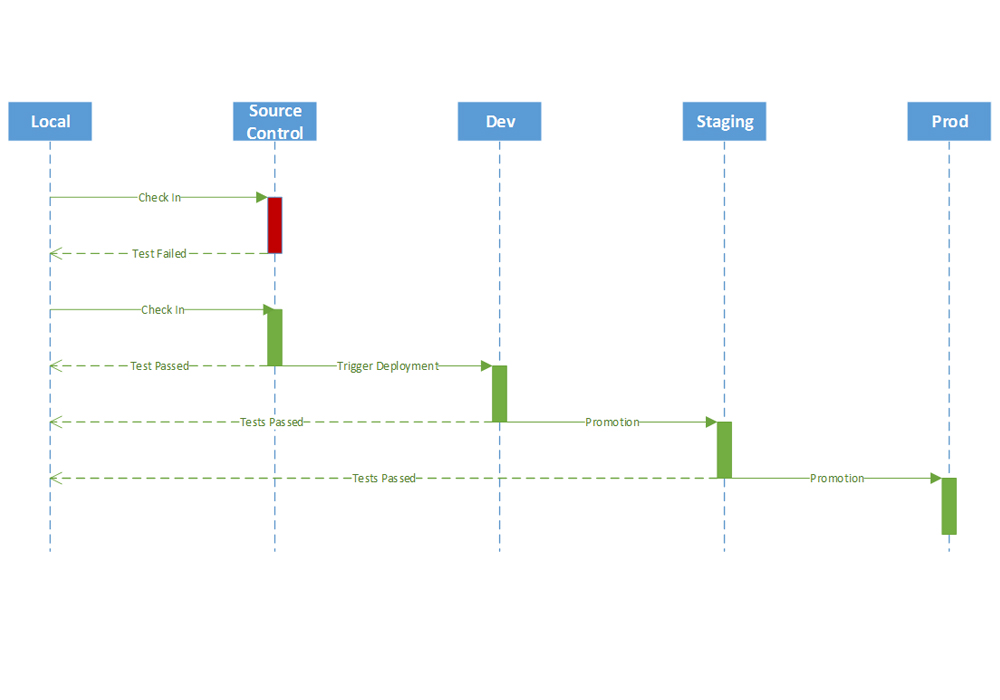

Code flow deployment strategy

[![Architecture diagram 5](/Images/sf-images/default-source/default-album/architecture-diagram-5.jpg "Architecture diagram 5")](/Images/sf-images/default-source/default-album/architecture-diagram-5.jpg)

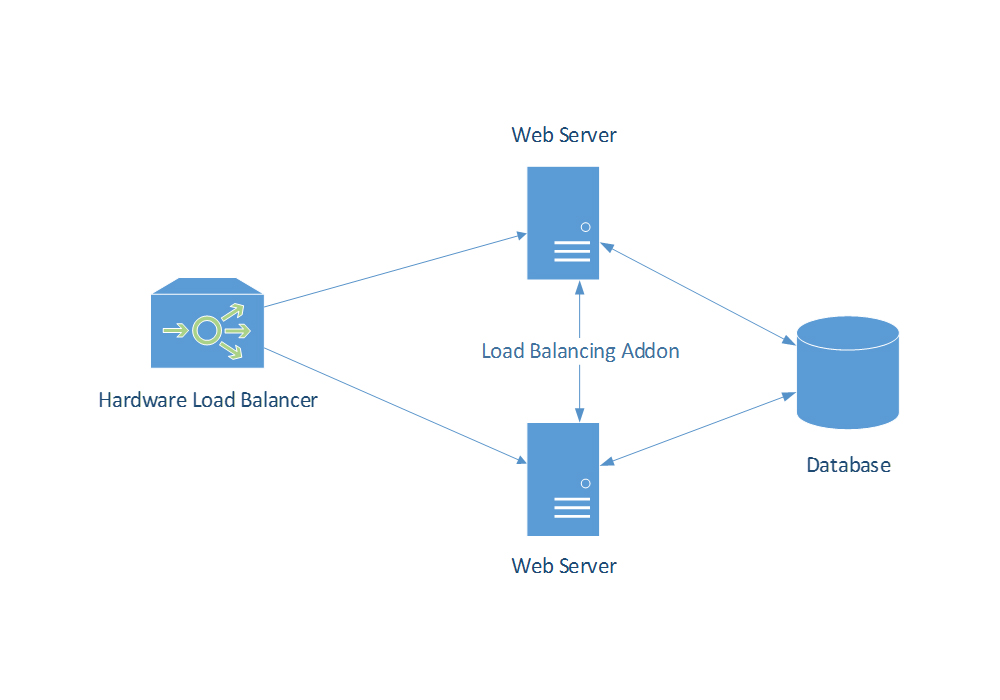

Simple production infrastructure diagram with hardware load balancer
Common on premise simplified setup.

[![Architecture diagram 4](/Images/sf-images/default-source/default-album/architecture-diagram-4.jpg "Architecture diagram 4")](/Images/sf-images/default-source/default-album/architecture-diagram-4.jpg)

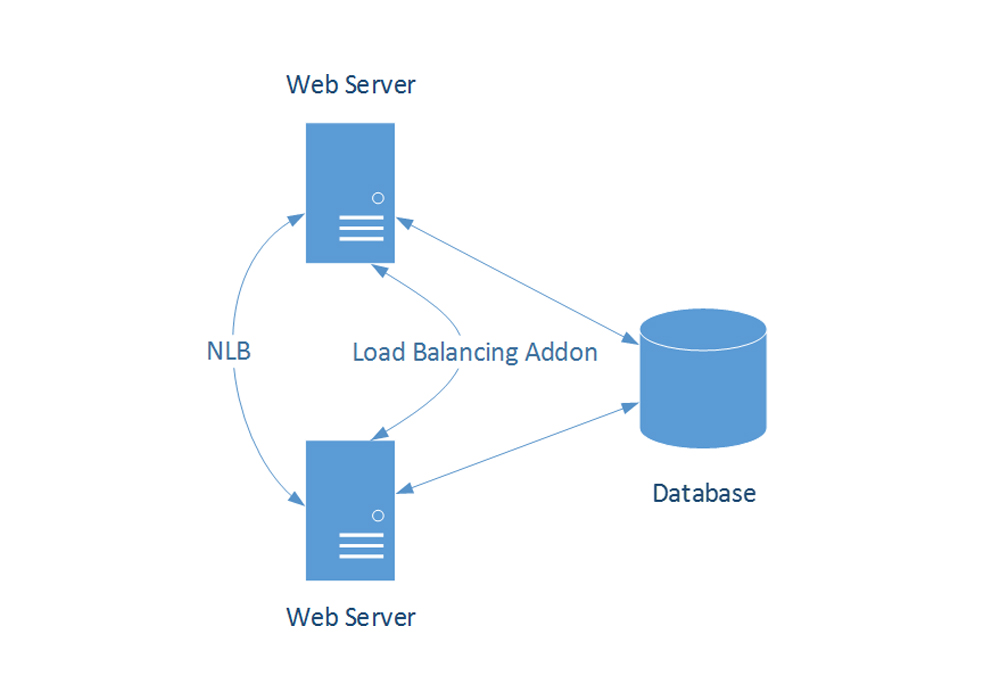

Simple production infrastructure diagram with software load balancer
Common in on premise or in cloud. Suitable for both AWS and Azure.

[![Architecture diagram 3](/Images/sf-images/default-source/default-album/architecture-diagram-3.jpg "Architecture diagram 3")](/Images/sf-images/default-source/default-album/architecture-diagram-3.jpg)

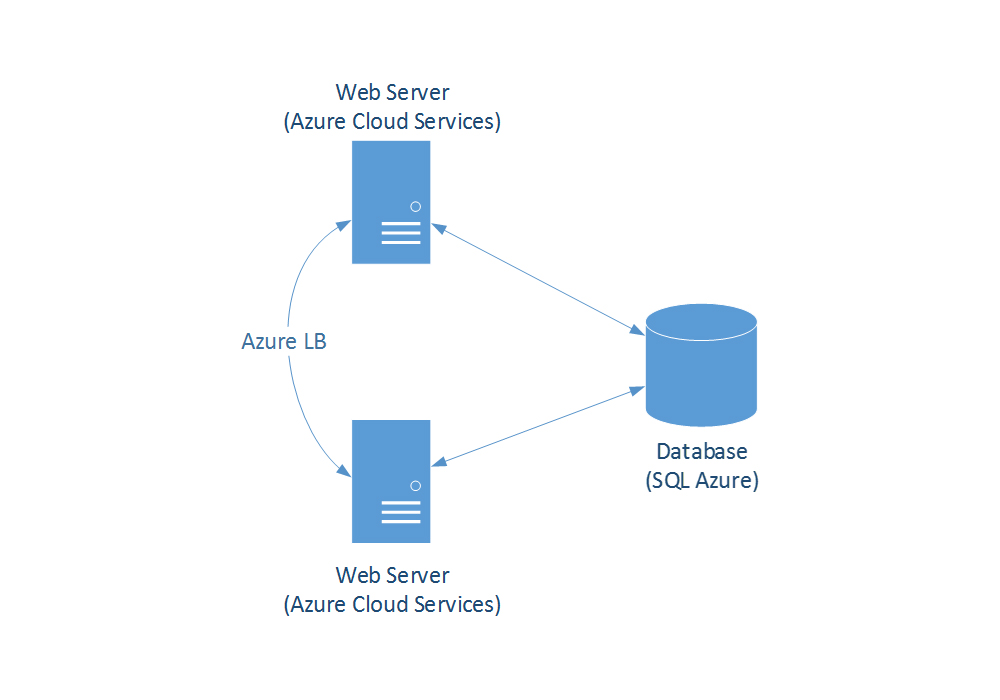

Simple production infrastructure diagram with Azure
When using Sitefinity CMS on Azure Cloud Services in a load-balanced scenario you do not need to configure Sitefinity CMS for load balancing.

[![Architecture diagram 2](/Images/sf-images/default-source/default-album/architecture-diagram-2.jpg "Architecture diagram 2")](/Images/sf-images/default-source/default-album/architecture-diagram-2.jpg)

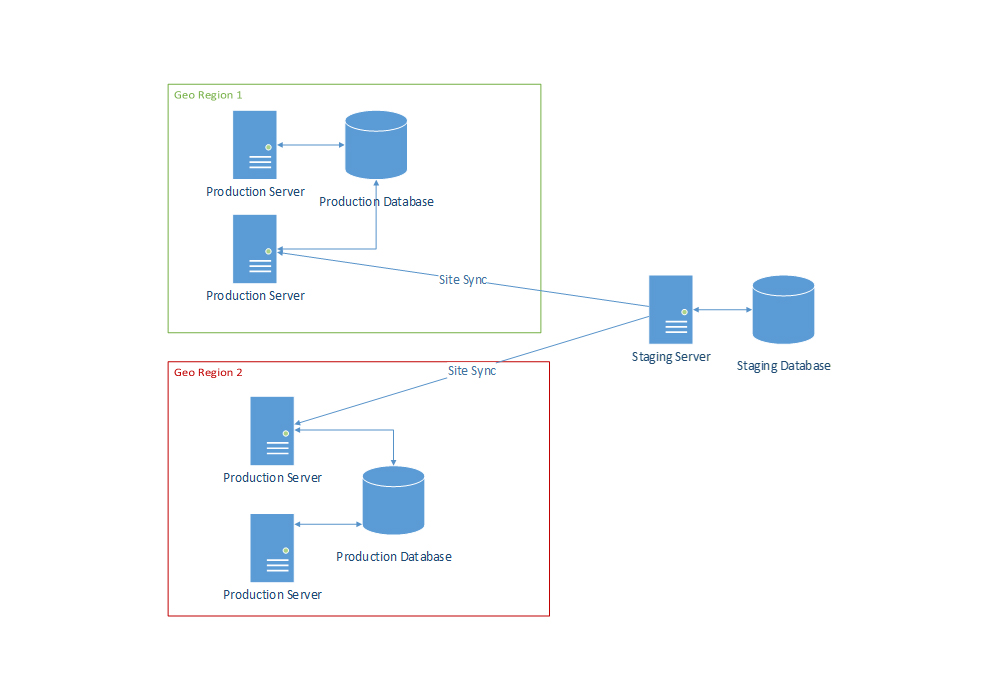

Production geographic distribution diagram
Geographic area should have its own database for reasons of latency.

[![Architecture diagram 1](/Images/sf-images/default-source/default-album/architecture-diagram-1.jpg "Architecture diagram 1")](/Images/sf-images/default-source/default-album/architecture-diagram-1.jpg)
